B2738F Ultra High Speed Brushless DC Motor

Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, life span 1200hrs
Hotline: 86-755-29169191
Fax: 86-755-29169007
download:Data download

B2738F

Output Power: 10W~130W

Weight: 75g (Approx.)

Ultra High Speed Brushless DC Motor--Typical Application

Specialized for Hair Dryer & Vacuum Cleaner



Model

Voltage(V)

No Load

Rated Load

Stall

Operating Range

Rated

Speed (rpm)

Current (A)

Torque (mNm)

Speed (rpm)

Current (A)

Output P. (W)

Torque (mNm)

Current (A)

B2738F-S01

95-125

DC110

146430

0.33

7

110000

1.2

90.5

10.23

3

B2738F-S02

190-240

AC220

 147033

0.12

7

110000

0.66

85.5

11.53

1.5

Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, life span 1200hrs

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

Outline Drawing:



Usable machine screw length 3.0mm max. from motor mounting surface

Unit: Millimeter

Performance Curve:

B2738F-S01                        DC110V

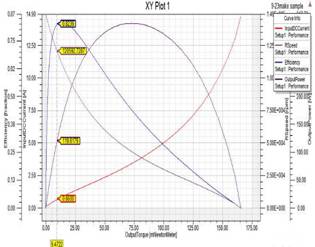

B2738F-S02                   AC220V
